Product Description

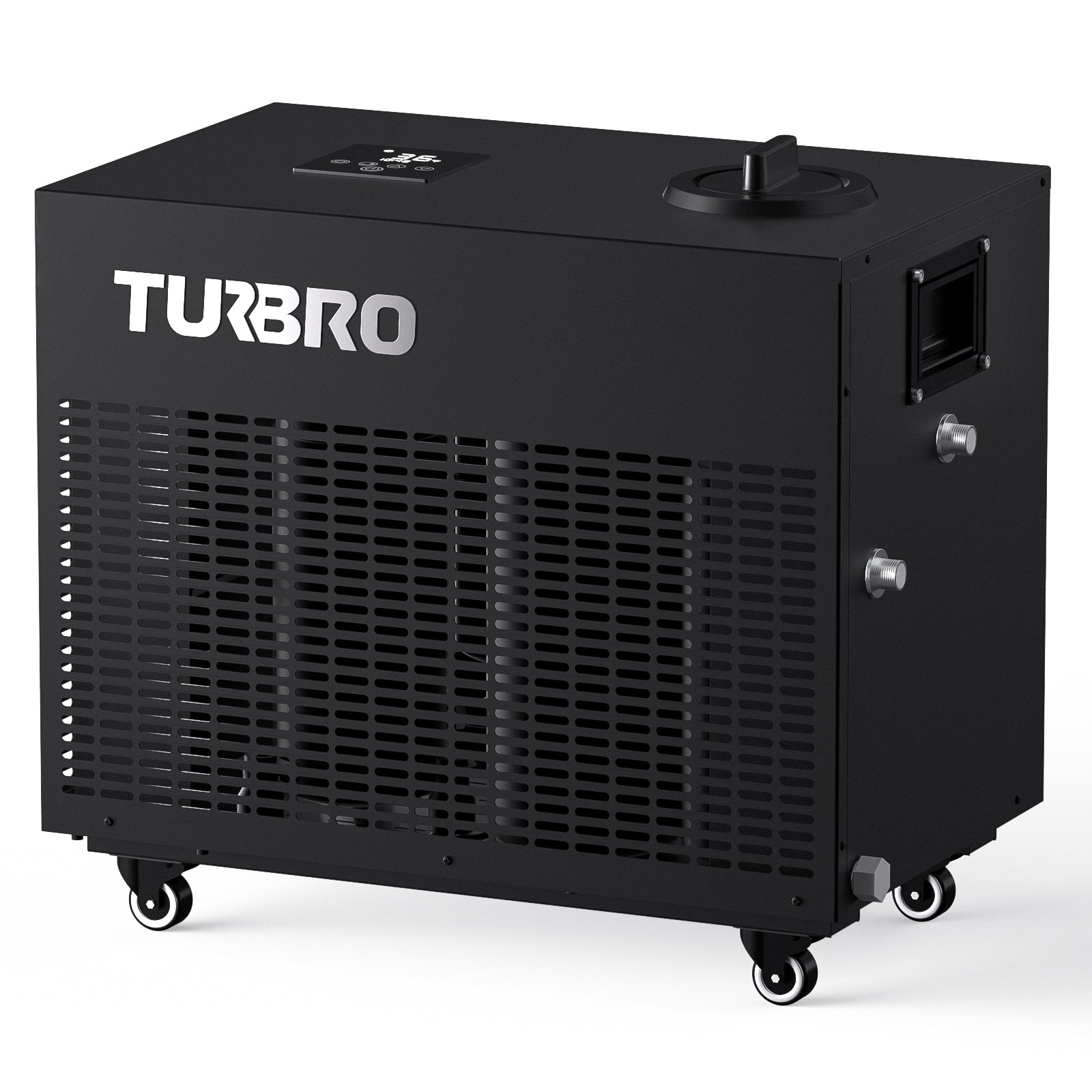

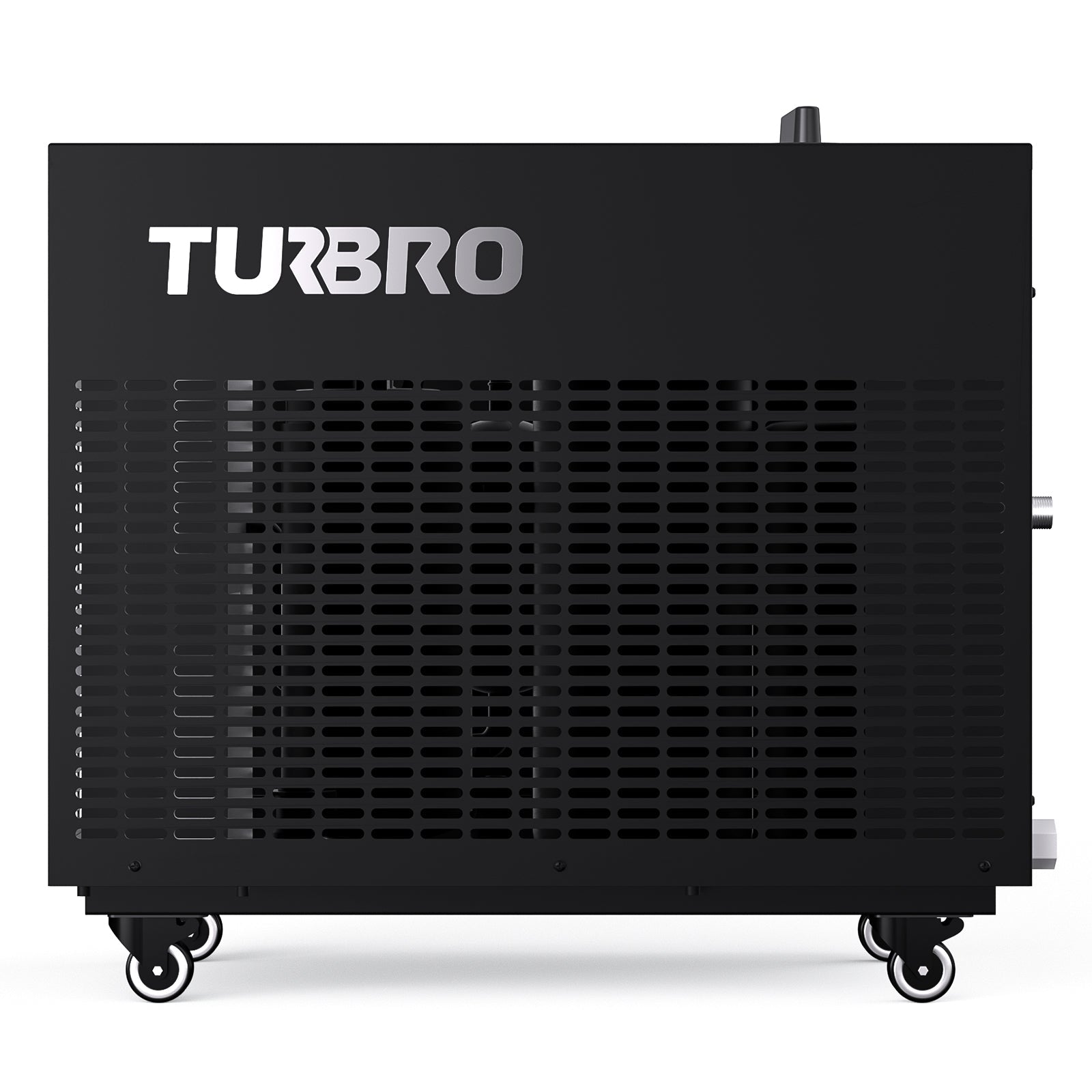

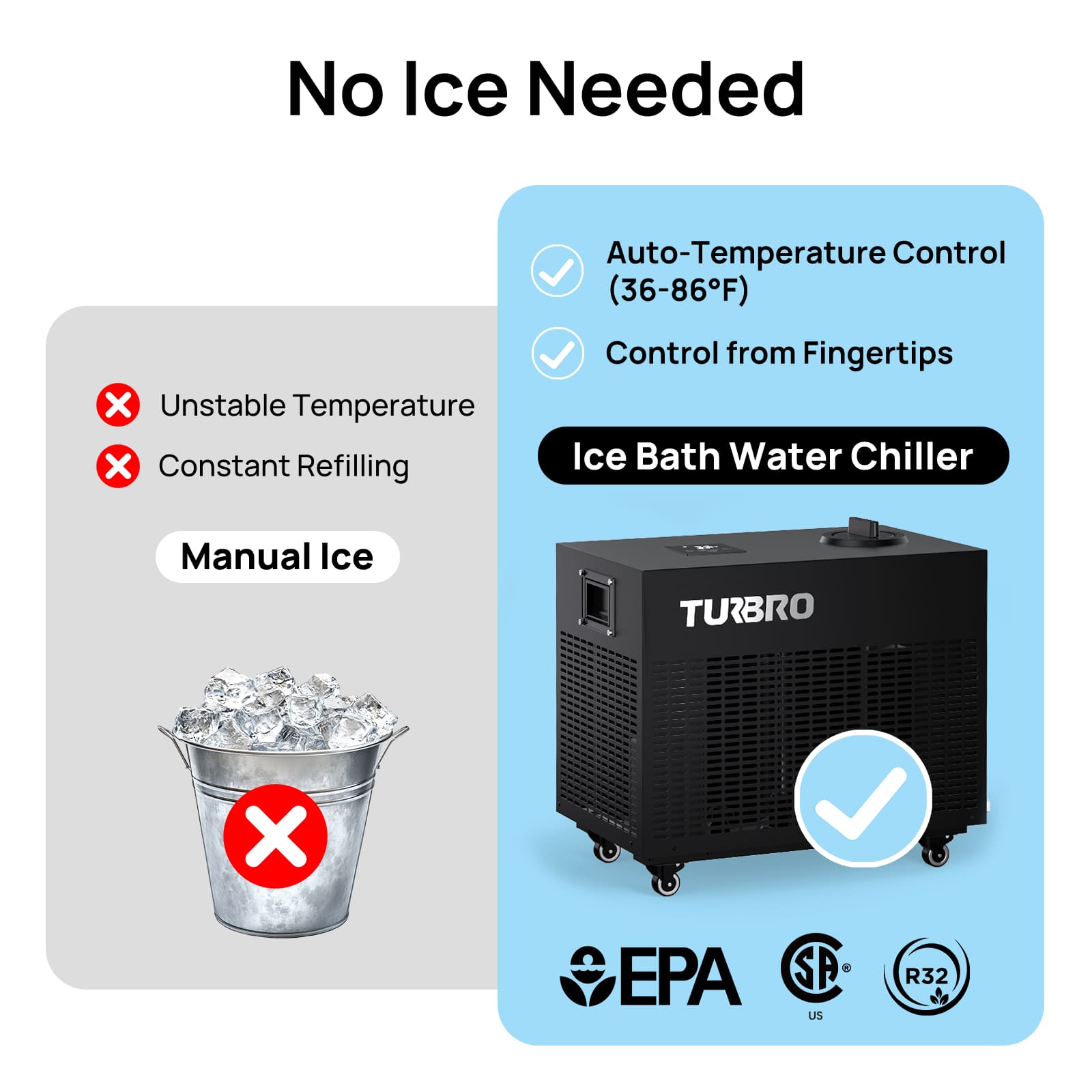

The FrostCore F85 is a water chiller designed for cold plunge tubs, ice baths, and compatible soaking tubs. It provides adjustable water temperature control from 36°F to 86°F (2°C to 30°C) without the need to add ice manually.

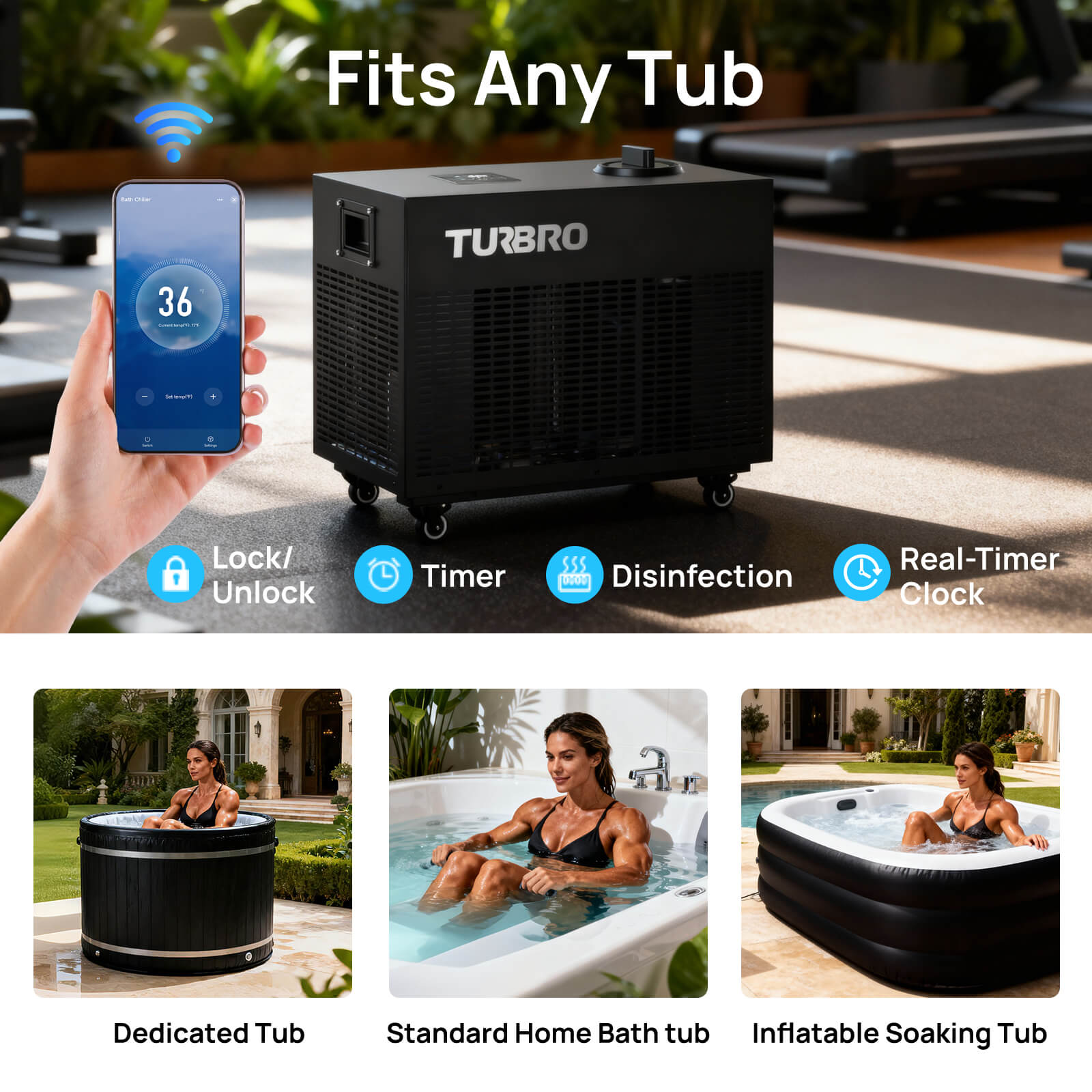

Compatible with a wide range of tubs with capacities between 80 and 132 gallons, the unit features an integrated circulation pump, a three-stage water filtration system, Wi-Fi connectivity, and a weather-resistant housing suitable for indoor or outdoor installation.

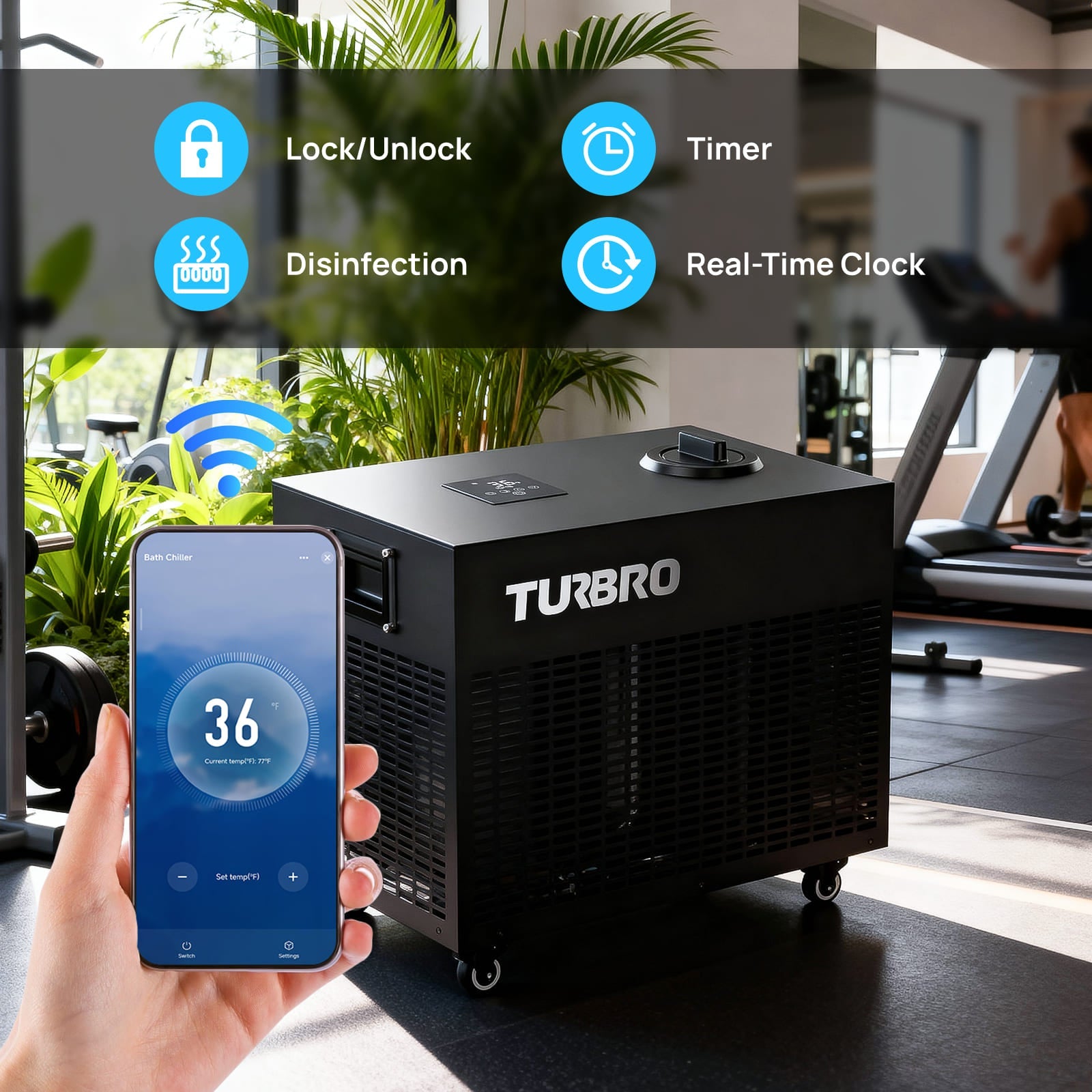

The intuitive control panel and companion smartphone app allow users to adjust temperature settings, create operating schedules, monitor system status, and manage additional system functions remotely over a 2.4 GHz Wi-Fi network.
Features
-
Adjustable water temperature from 36°F to 86°F
-
Compatible with tubs ranging from 80–132 gallons
-
Integrated circulation pump for continuous water flow
-
High-performance compressor and evaporator
-

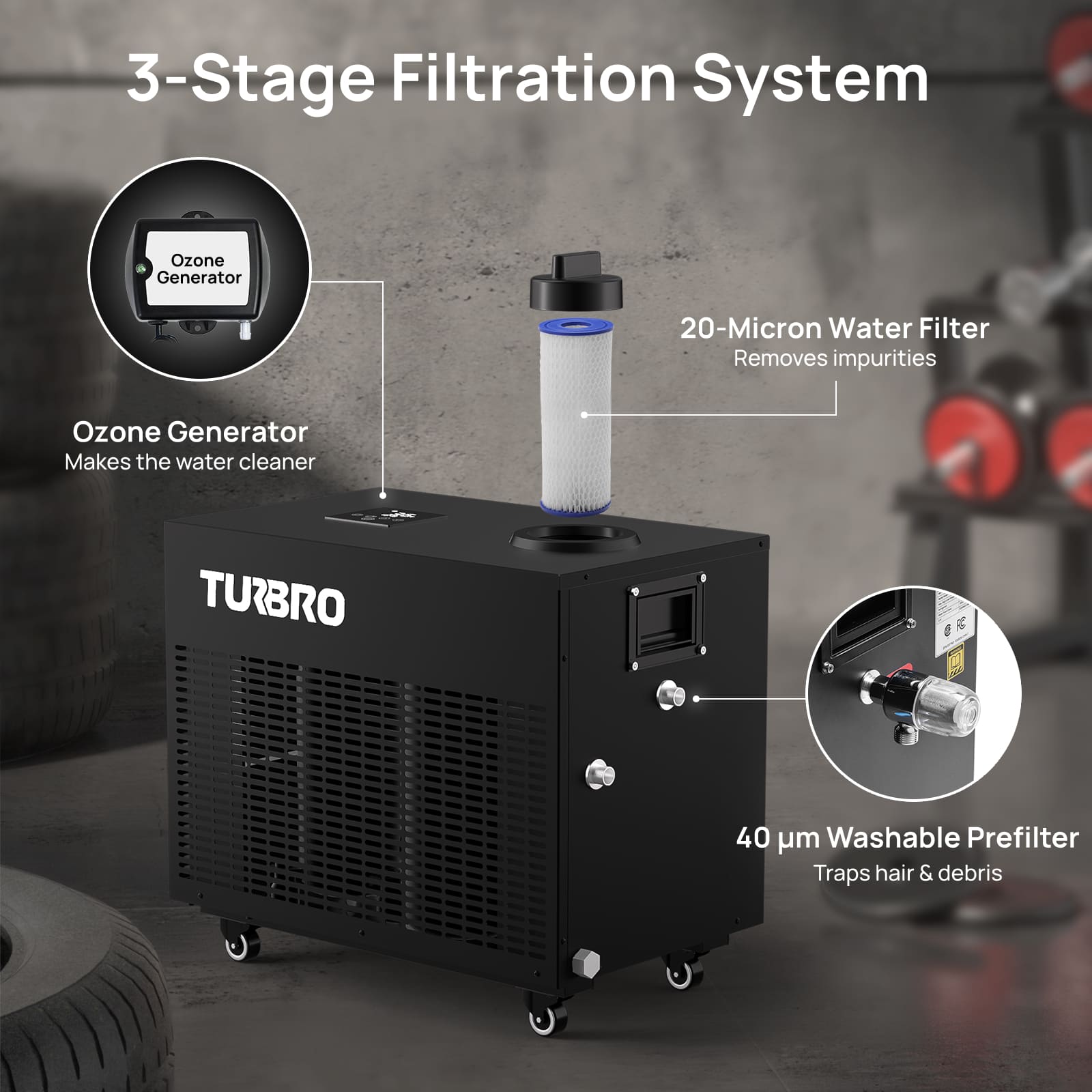

Three-stage water filtration system
-
40 μm debris filter
-
20-micron water filter
-
Integrated ozone water treatment system
-
Wi-Fi app control (2.4 GHz)
-
Digital control panel
-
Programmable operating schedules
-
Remote monitoring and controls
-
GFCI power plug
-
IPX4 splash-resistant housing
-
UV-resistant exterior
-
Indoor and outdoor installation
-
Installation can typically be completed in approximately five minutes following the included instructions
Technical Specifications
-
Model: FrostCore F85
-
Maximum Cooling Capacity: 9,553 BTU/h
-
Power Consumption: 1,030 W
-
Energy Efficiency Ratio (EER): 9.27 BTU/W
-
Power Supply: 110–120 V / 60 Hz
-
Maximum Input Current: 14 A
-
Temperature Range: 36–86°F
-
Refrigerant: R32
-
Minimum Ambient Operating Temperature: 34°F
-
Rated Water Flow: 3.5 GPM
-
Maximum Pressure (High/Low): 609 / 174 PSI
-
Water Connection: 1/2" NPT
-
Ingress Protection: IPX4
Installation

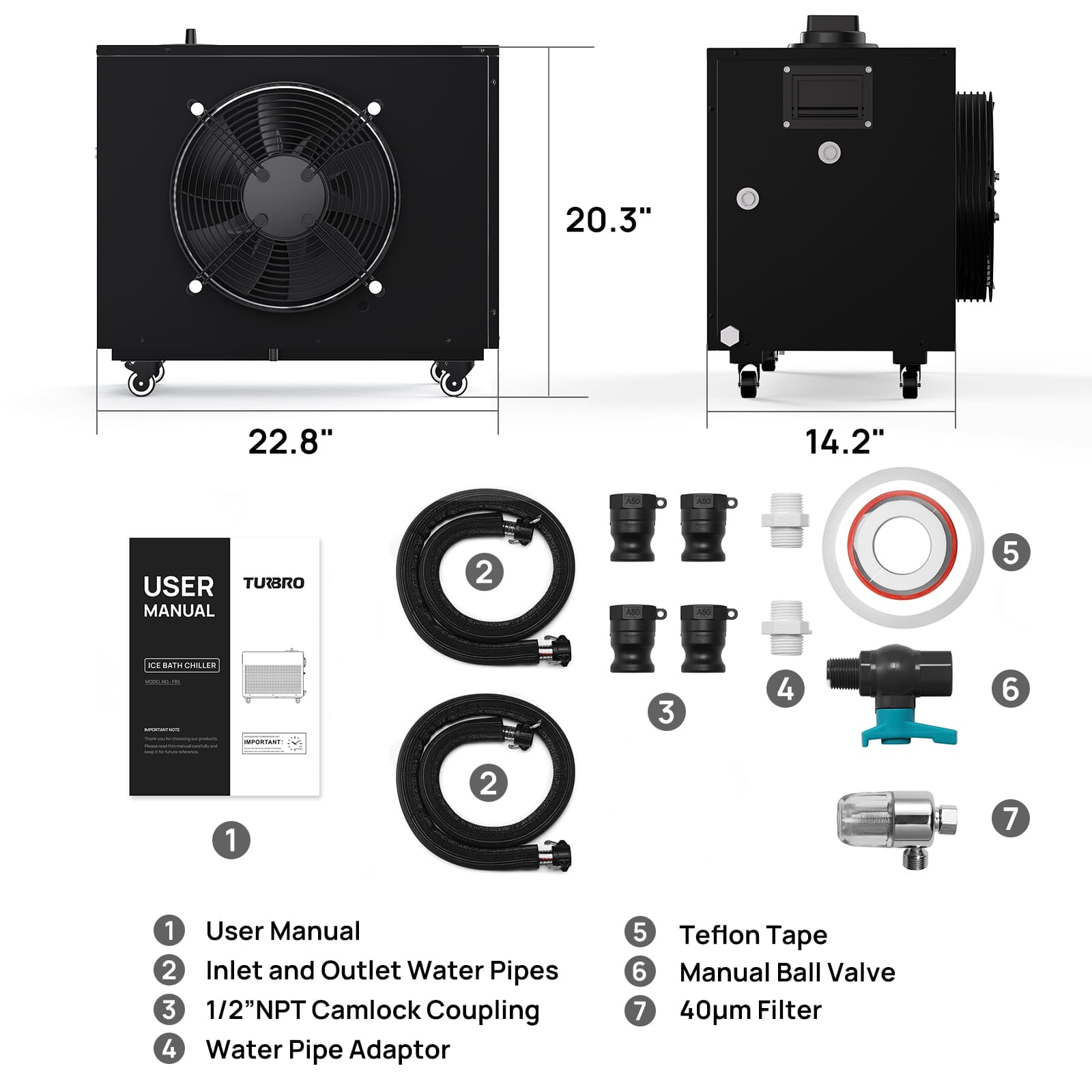

The package includes the water chiller, inlet and outlet hoses, camlock couplings, user manual, and installation accessories.
For first-time installation, allow the unit to remain upright for 3–4 hours before powering it on. Follow the included instructions for setup and operation.
